XG-1541 High Availibility

Your Advantage: No custom fees, no import tax inside the EU

The appliance includes the latest version of pfSense (preinstalled)

* Terms and Conditions at each Product Page

 5.298,00 ( 6.304,62 incl. VAT)

Plus 19% VAT
Delivery Time: approx. 5 - 7 Business Days
SKU: XG-1541-HA Categories: , , Brand:

Alternative Products


XG-1541 High Availability

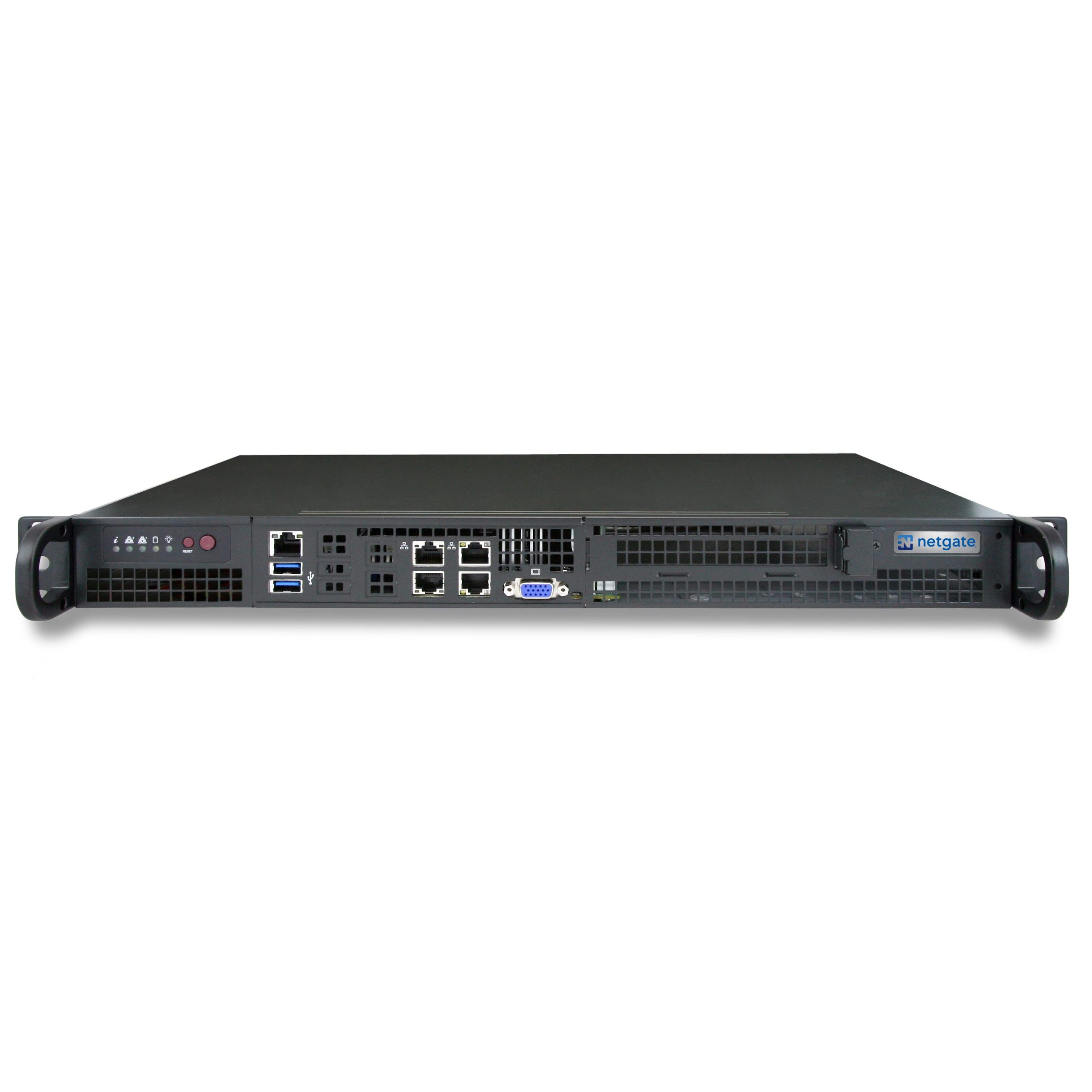

The pfSense XG-1541 High Availability 1U rack system is a state of the art pfSense Security Gateway Appliance.

Built with performance, versatility, and low total cost of ownership in mind, the XG-1541 High Availability pfSense system meets the growing needs of organizations of all sizes.

This pfSense appliance can be configured as a firewall, LAN or WAN router, VPN appliance, DHCP Server, DNS Server, and IDS/IPS with optional packages to deliver a high performance, high throughput front-line security architecture at a excellent price per gigabit.

* Terms and Conditions at each Product Page

Hardware Specification

CPU Intel “Xeon-DE” D-1541, FCBGA 1667 supported SoC AES/NI and Intel QuickAssist
CPU Cores 8 Cores, 45W
Networking 2x 1GB LAN via Intel® i350-AM2 1 Gigabit Ethernet
2x 10GB LAN via SoC 10GBase-T,
1 Dedicated IMPI Lan port.
Storage 150 GB SSD
Memory 16 GB DDR4 UDIMM
Expansion 1x PCI-E 3.0 x 16 (in x4) AOC Slot
6x SATA3 ports
Other Ports 1x BMC integrated ASPEED AST2400
1x IPMI Port
1x VGA Port
2x Fast UART 16550 Serial Port (1 rear, 1 header)
USB Ports 2x USB 3.0 ports
Hard drive activity LED
2x Network activity LEDs
System Overheat LED
Information LED (temp., status)
Form Factor Standard 19″ 1U rack mount
Cooling 200W Low-noise PS with PFC: Active CPU fan, 40mm chassis fan
Power 1x SATA DOM power connector
100-240V, 50-60Hz, 2.6 Amp MAX
German Powercord IEC320-C13
Environmental 10°C to 35°C Operating Temp
8% to 90% Operating Relative Humidity (non-condensing)
Power Consumption TBD (idle)
Certifications FCC, CE, RoHS, UL
Physical Dimension 43.7cm x 4.32cm x 25cm (17.2″ x 1.7″ x 9.85″)

Voleatech/Netgate Support optional

Best For

  • Medium to Large Sized Networks with 1U rack mount cabinets
  • Medium to Large Sized Branch Office with heavy loads
  • Managed Service Providers (MSP) / Managed Security Service Provider (MSSP) On Premise Appliance
  • Anyone with High-Speed 10 Gigabit and/or 1 Gigabit Connections
  • Many VPN Connections
  • Anyone with high speed connections who wish to configure IDS/IPS features

pfSense Features

pfSense is a free, open source firewall and router platform based on FreeBSD that is functionally competitive with expensive, proprietary commercial firewalls. pfSense can be configured as a stateful packet filtering firewall, a LAN or WAN router, VPN Appliance, DHCP Server, DNS Server, or can be configured for other applications and special purpose Appliances. This next generation pfSense security appliance features include:

  • Stateful packet filtering firewall or pure router
  • Routing policy per gateway and per-rule for multiple WAN, failover, load balancing
  • Transparent layer 2 firewall
  • Support for IPV6, NAT, BGP
  • Captive portal with MAC filtering, RADIUS support, etc
  • VPN: IPsec, OpenVPN
  • Dynamic DNS client
  • DHCP Server and Relay functions
  • PPPoE Server
  • Reporting and monitoring features with real time information
  • and much more…

Low Total Cost of Ownership

  • No artifical limits or add-ons required to make your system fully functional.
  • No additional usage or feature based pricing. Enjoy unlimited users, unlimited firewall rules, unlimited IPsec tunnels, dual WAN, etc.
  • Low power requirements to help save you money.
  • No moving parts to wear out. This system is designed for a long deployment lifetime.

Growth with you

  • From firewall to Unified Threat Management, get all the security features you need to protect your home or business.
  • Flexible configuration and support for multi-WAN, high availability, VPN, load balancing, reporting and monitoring, etc.
  • Add optional packages such as Snort or Suricata for IDS/IPS and network security monitoring, Squid for optimized content delivery and SquidGuard for anti-spam/anti-phishing and URL filtering.
  • Maximum Active Connections: 8,000,000

Easy Gui Management

  • Manage pfSense settings through our web-based GUI.
  • No fumbling with a command line interface or typing arcane commands.

Secure Remote Access

  • Connect via encrypted Virtual Private Networks (VPN) between your offices, let mobile workers connect security.


There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.

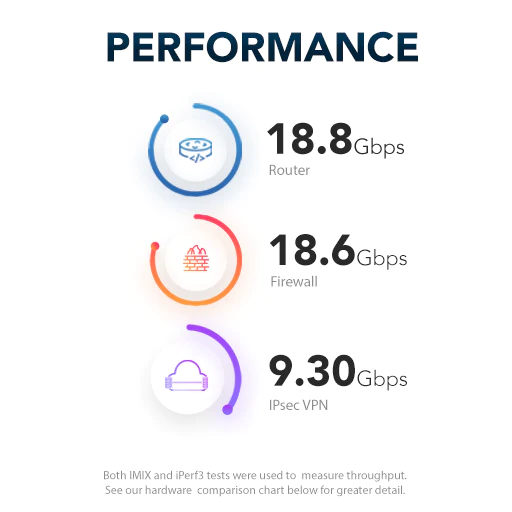

iperf3 (Bidirectional)

Test Speed
L3 Forwarding 17.40 Gb/s
Firewall (10K ACLs) 14.63 Gb/s
IPSec VPN (AES-128-GCM) 2.82 Gb/s


IMIX Traffic (Bidirectional)

Test Speed
L3 Forwarding 15.41 Gb/s
Firewall (10K ACLs) 6.10 Gb/s
IPSec VPN (AES-128-GCM) 2.81 Gb/s

1. Throughput Data are based on bidirectional traffic across all ports

2. Iperf3 traffic is TCP 1460 Bytes + TCP framing

3. IMIX Traffic is sets of 7x 40 Byte packets, 4x 576 Byte packets, 1x 1500 Byte packets and the Ethernet Frame Overhead

Source: Netgate USA
