Description
XG-1537 High Availability
The pfSense XG-1537 High Availability 1U rack system is a state of the art pfSense Security Gateway Appliance.
The XG-1537 High Availability 1U pfSense Security Gateway Appliance offers the next-generation in firewall protection with preloaded pfSense software.
pfSense software provides feature-rich security services and perimeter security in today’s threat-sensitive business environment unencumbered by traditional annual contracts, licensing fees, or artificial limitations.
With Intel 10 Gbps Ethernet and fiber-ready connections, it is ideally suited to deliver fast, robust operation and leaves the PCIe slot open for additional ports or future expansion.
Hardware Specification
| CPU | Intel “Xeon-DE” D-1537, 1.7 GHz FCBGA 1667 supported SoC AES/NI |
| CPU Cores | 8 Cores, 16 Threads, 35W |
| Networking | 2x 10G SFP+ LAN via SoC 2x 1GbE RJ45 LAN via Intel® i350-AM2 1x IPMI RJ45 Dedicated Port |
| Extensions | 1x PCI-E 3.0 x 16 slot, can support crypto offload with CPIC card M.2 PCI-E 3.0 x4 (SATA support) M Key 2242/2280 6x SATA3 (6 Gbps) ports via SoC |
| Storage | 256GB Micron M.2 SSD |
| Memory | 8 GB DDR4 UDIMM |
| Console Port | 1x VGA Port |
| USB Ports | 2x USB 3.0 ports (rear) 2x USB 2.0 ports (via header) |
| LED | Power LED Hard drive activity LED 2x Network activity LEDs System Overheat LED Information LED (temp., status) |
| Form Factor | Standard 19″ 1U rack mount |
| Cooling | 200W Low-noise PS with PFC: Active CPU fan, 40mm chassis fan |
| Power | 240/120VAC -> 12VDC C13 Cable |
| Other Ports | 1x BMC integrated ASPEED AST2400 1x IPMI RJ45 Dedicated Port (Realtek RTL8201N PHY) 1x VGA Port (Aspeed AST2400) 1x SuperDOM power connector 1x COM Headers for TPM, GPIO, SMbus |
| Environmental | 0°C bis 60°C Operating Temp 8% bis 90% Operating Relative Humidity (non-condensing) |
| Certifications | CE, FCC, RoHS, UL |
| Support |
Voleatech/Netgate Support optional |
Best For
- Medium to Large Businesses
- Medium to Large Branch Offices
- Installations that plan to add packages which require logging
- All businesses that have Gigabit connectivity
- All businesses that have fiber connectivity
pfSense Features
pfSense is a free, open source firewall and router platform based on FreeBSD that is functionally competitive with expensive, proprietary commercial firewalls. pfSense can be configured as a stateful packet filtering firewall, a LAN or WAN router, VPN Appliance, DHCP Server, DNS Server, or can be configured for other applications and special purpose Appliances. This next generation pfSense security appliance features include:
- Stateful packet filtering firewall or pure router
- Routing policy per gateway and per-rule for multiple WAN, failover, load balancing
- Transparent layer 2 firewall
- Support for IPV6, NAT, BGP
- Captive portal with MAC filtering, RADIUS support, etc
- VPN: IPsec, OpenVPN
- Dynamic DNS client
- DHCP Server and Relay functions
- PPPoE Server
- Reporting and monitoring features with real time information
- and much more…
Low Total Cost of Ownership
- No artifical limits or add-ons required to make your system fully functional.
- No additional usage or feature based pricing. Enjoy unlimited users, unlimited firewall rules, unlimited IPsec tunnels, dual WAN, etc.
- Low power requirements to help save you money.
- No moving parts to wear out. This system is designed for a long deployment lifetime.
Growth with you
- From firewall to Unified Threat Management, get all the security features you need to protect your home or business.
- Flexible configuration and support for multi-WAN, high availability, VPN, load balancing, reporting and monitoring, etc.
- Add optional packages such as Snort or Suricata for IDS/IPS and network security monitoring, Squid for optimized content delivery and SquidGuard for anti-spam/anti-phishing and URL filtering.
- Maximum Active Connections: 8,000,000
Easy Gui Management
- Manage pfSense settings through our web-based GUI.
- No fumbling with a command line interface or typing arcane commands.
Secure Remote Access
- Connect via encrypted Virtual Private Networks (VPN) between your offices, let mobile workers connect security.

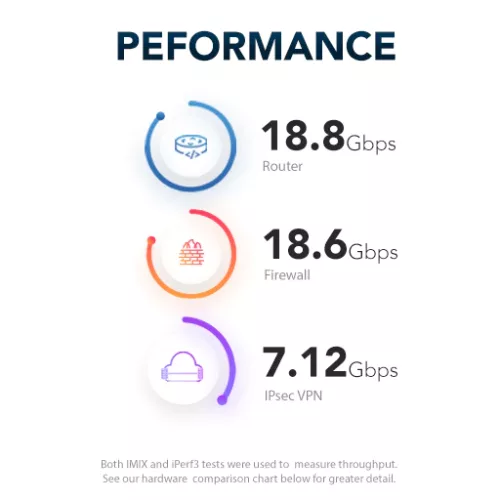

iperf3 (Bidirectional)
| Test | Speed |
| L3 Forwarding | 16.40 Gb/s |
| Firewall (10K ACLs) | 14.48 Gb/s |
| IPSec VPN (AES-128-GCM) | 2.77 Gb/s |
IMIX Traffic (Bidirectional)
| Test | Speed |
| L3 Forwarding | 11.46 Gb/s |
| Firewall (10K ACLs) | 5.00 Gb/s |
| IPSec VPN (AES-128-GCM) | 2.10 Gb/s |
1. Throughput Data are based on bidirectional traffic across all ports
2. Iperf3 traffic is TCP 1460 Bytes + TCP framing
3. IMIX Traffic is sets of 7x 40 Byte packets, 4x 576 Byte packets, 1x 1500 Byte packets and the Ethernet Frame Overhead
Source: Netgate USA
