Your Advantage: No custom fees, no import tax inside the EU
The appliance includes the latest pfSense Version (preinstalled)
All Ports are Switch Ports
Not suitable for applications with more than 500Mbps
throughput or more than 100Mbps IPSec VPN
SG-1100
Alternative Products
Beschreibung
SG-1100

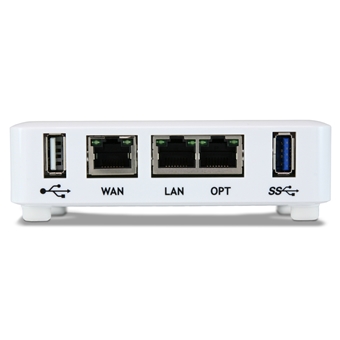

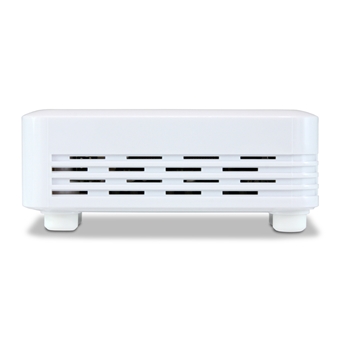

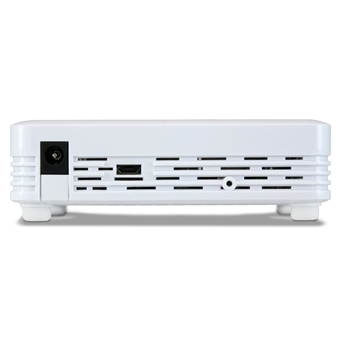

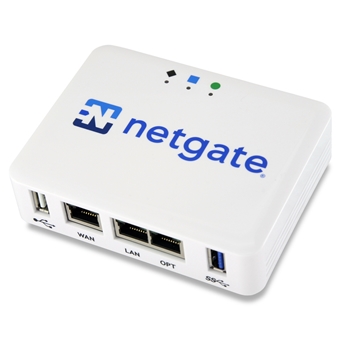

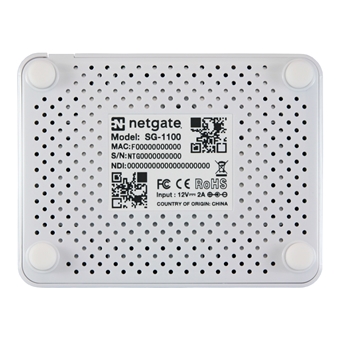

The SG-1100 desktop system is a state of the art pfSense® Security Gateway appliance.
The SG-1100 microFirewall was designed to meet the needs of the security community with a smart, price sensitive, solid state, low-power, easy to deploy firewall.
This pfSense appliance can be configured as a firewall, LAN or WAN router, VPN appliance, DHCP Server or DNS Server with optional packages to deliver a high performance, high throughput front-line security architecture at a excellent price per gigabit.
Hardware Specification
| CPU | Marvell Armada 3720LP (88F3720) dual core ARM Cortex A53 processor @ 1.2GHz |
| CPU Cores | 2 Core |
| Networking | 1x Marvell 88E6141 networking switch 3x GbE Ethernet (WAN/LAN/OPT) |
| Storage | 8GB eMMC Flash on board |
| Memory | 1 GB DDR4 RAM on board |
| Expansion | 1x Mini PCIe slot(1) |
| Console Port | 1x Micro USB port (console) |
| USB Ports | 1x USB 3.0 1x USB 2.0 |
| LED | 3 Status LED |
| Others | Reset button, heatsink |
| Form Factor | Plastic 110 x 84.6 x 31.75 mm (4.33″ x 3.33″ x 1.25″) |
| Cooling | Fanless |
| Power | 12V 2A DC 5.5mm x 2.1mm x 10mm jack, center pin positive (power over USB not supported) |
| Environmental | TBD |
| Power Consumption | 3.48W (idle) |
| Certifications | CE, FCC, RoHS |
| Support |
Community Support |
Best For
- Small VPN Endpoint
- IoT Security Endpoint
- Network tap
- Firewall für IPMI ports
- Test Environments
pfSense Features
pfSense is a free, open source firewall and router platform based on FreeBSD that is functionally competitive with expensive, proprietary commercial firewalls. pfSense can be configured as a stateful packet filtering firewall, a LAN or WAN router, VPN Appliance, DHCP Server, DNS Server, or can be configured for other applications and special purpose Appliances. This next generation pfSense security appliance features include:
- Stateful packet filtering firewall or pure router
- Routing policy per gateway and per-rule for multiple WAN, failover, load balancing
- Transparent layer 2 firewall
- Support for IPV6, NAT, BGP
- Captive portal with MAC filtering, RADIUS support, etc
- VPN: IPsec, OpenVPN
- Dynamic DNS client
- DHCP Server and Relay functions
- PPPoE Server
- Reporting and monitoring features with real time information
- and much more…
Low Total Cost of Ownership
- No artifical limits or add-ons required to make your system fully functional.
- No additional usage or feature based pricing. Enjoy unlimited users, unlimited firewall rules, unlimited IPsec tunnels, dual WAN, etc.
- Low power requirements to help save you money.
- No moving parts to wear out. This system is designed for a long deployment lifetime.
Growth with you
- From firewall to Unified Threat Management, get all the security features you need to protect your home or business.
- Flexible configuration and support for multi-WAN, high availability, VPN, load balancing, reporting and monitoring, etc.
- Add optional packages such as Snort or Suricata for IDS/IPS and network security monitoring, Squid for optimized content delivery and SquidGuard for anti-spam/anti-phishing and URL filtering.
- Maximum Active Connections: 8,000,000
Easy Gui Management
- Manage pfSense settings through our web-based GUI.
- No fumbling with a command line interface or typing arcane commands.
Secure Remote Access
- Connect via encrypted Virtual Private Networks (VPN) between your offices, let mobile workers connect security.

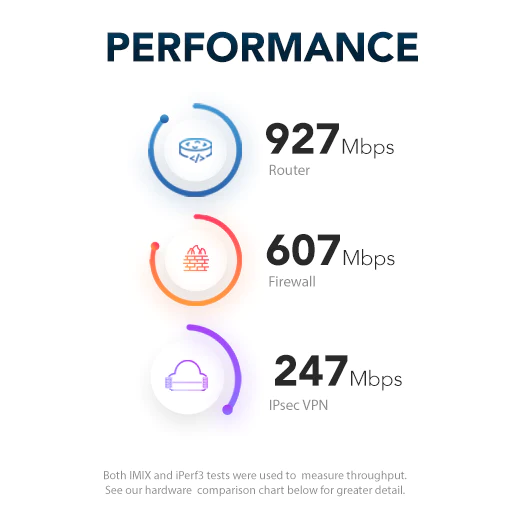

iperf3 (Bidirectional)
| Test | Speed |
| L3 Forwarding | 880 Mb/s |
| Firewall (10K ACLs) | 656 Mb/s |
| IPSec VPN (AES-128CBC, SHA1) | 74.2 Mb/s |
IMIX Traffic (Bidirectional)
| Test | Speed |
| L3 Forwarding | 480 Mb/s |
| Firewall (10K ACLs) | 190 Mb/s |
| IPSec VPN (AES-128CBC, SHA1) | 46 Mb/s |
1. Throughput Data are based on bidirectional traffic across all ports
2. Iperf3 traffic is TCP 1460 Bytes + TCP framing
3. IMIX Traffic is sets of 7x 40 Byte packets, 4x 576 Byte packets, 1x 1500 Byte packets and the Ethernet Frame Overhead
Source: Netgate USA
